| Model NO.: | ZZ1257N3647N1 | Transmission Type: | Manual |
|---|---|---|---|
| Emission Standard: | Euro 3 | Displacement: | 8 |
| Payload: | 30T | Fuel: | Diesel |
| Drive Mode: | 6x4 | Maximum Horsepower: | 300-400hp |
| Condition: | Used | Tyre: | New |
| Steering System: | Hydraulic Steering With Power Assistance | Chassis Brand: | Sinotruk Chassis |
| Color: | Customized | Cab: | Air Conditioner |
| Cargo Box Material: | Carbon Steel | Electric System: | Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta |
| Transport Package: | Naked Packing | Specification: | 10245x2496x3450m |
| Trademark: | Sinotruk | Origin: | China |
| HS Code: | 87019090 | Supply Ability: | 1000pieces/Year |
| Package Size: | 1024.00cm * 250.00cm * 345.00cm | Package Gross Weight: | 12100.000kg |
| After-sales Service: | 6 Months | Warranty: | 6 Months |
| Certification: | ISO9000, CCC, TS16949, EEC, RoHS, CE | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |

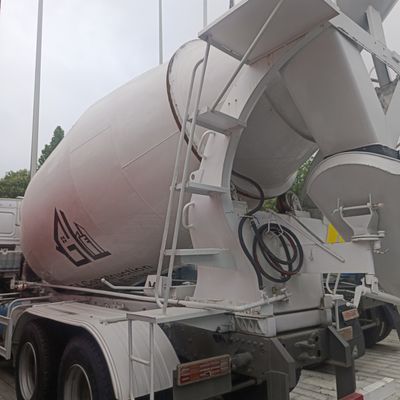

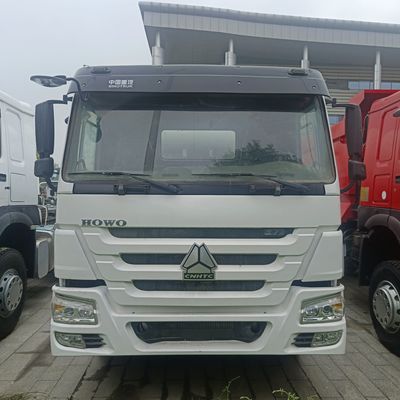

Detailed Pictures for SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro 3 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
