| Model NO.: | ZZ1257N3647N1 | Transmission Type: | Manual |
|---|---|---|---|
| Emission Standard: | Euro 3 | Displacement: | 8 |
| Payload: | 30T | Fuel: | Diesel |
| Drive Mode: | 6x4 | Maximum Horsepower: | 300-400hp |
| Condition: | Used | Tyre: | New |
| Steering System: | Hydraulic Steering With Power Assistance | Chassis Brand: | Sinotruk Chassis |
| Color: | Customized | Cab: | Air Conditioner |
| Cargo Box Material: | Carbon Steel | Electric System: | Battery:2X12V/165ah; Alternator:28V-1500 Kw; Sta |
| Transport Package: | Naked Packing | Specification: | 10245x2496x3450m |
| Trademark: | Sinotruk | Origin: | China |
| HS Code: | 87019090 | Supply Ability: | 1000pieces/Year |
| Package Size: | 1024.00cm * 250.00cm * 345.00cm | Package Gross Weight: | 12100.000kg |
| After-sales Service: | 6 Months | Warranty: | 6 Months |
| Certification: | ISO9000, CCC, TS16949, EEC, RoHS, CE | Customization: | Available | Customized Request |
| Shipping Cost : | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Model NO | ZZ1257N3647N1 | Productivity | 180m²/h | |
| Feeding Height | 1380mm | Vibrating Amplitude | 0.9mm | |
| Certification | ISO9001: 2000 | Condition | Used | |
| Color | White | Cbm | 10/12cbm | |
| Customlize | Support Customlize | Water Tank | 450L | |
| Overall Dimension | 9000*2550*3950 mm | Transmission | Hw19710, 10f & 2r with Pto | |
| Transport Package | Nude | Specification | 8800x2550x3800mm | |
| Trademark | HOWO | Origin | Shandong | |
| Production Capacity | 200/months |

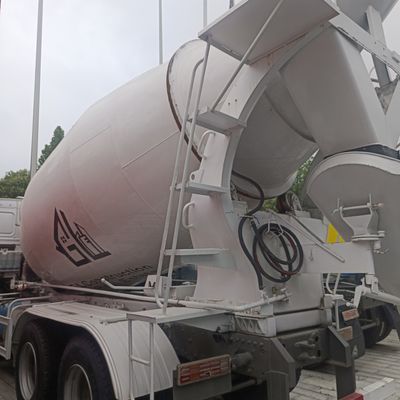

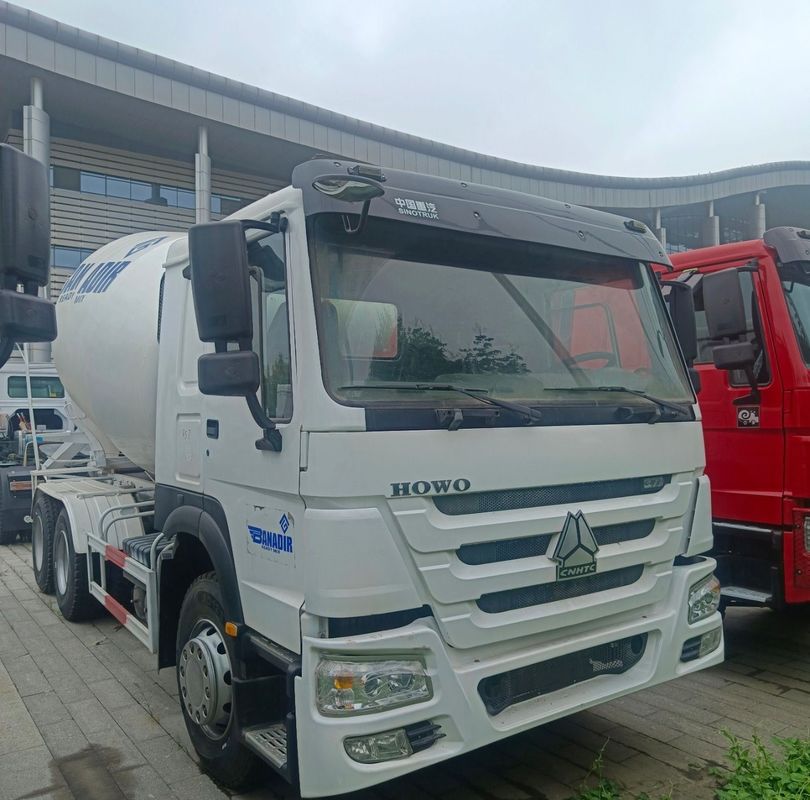

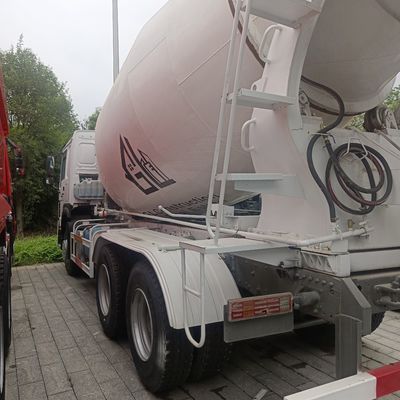

Immerse yourself in the intricate details of the SINOTRUK 10CBM 12CBM HOWO 10 Wheeler Concrete Mixer Truck. Our comprehensive gallery showcases the robust design and superior engineering of this versatile vehicle.
| brand | Sinotruk Howo | |
| Cabin | Driving type 6x4, LHD | |
| HW76 single bed | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 10245x2496x3450 |
| Wheel base (mm) | 3600+1350 | |
| Wheel track (front/rear) (mm) | 2022/2022 | |
| Approach/Departure angle(°) | 16/24 | |
| Max. driving speed(km/h) | 90 | |
| Engine | Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Emission standard | Euro 3 | |
| Gearbox | 10 forwards & 2 reverse | |
| Steering | Left hand drive | |
| Tire | 12R22.5 tubeless tires with one spare | |
| Mixer Drum | Mixer Capacity | 16 cubic meters |
| Drum thickness | 6mm | |
| Blade thickness | 4mm | |
| Tanker Material: | 16MnQ345 Carbon Steel | |
| Filling Rate(%) | 59 | |
| Input Speed (m3/min) | ≥2.8 | |
| Output Speed (m3/min) | ≥1.2 | |
| Surplus Ratio | ≤0.5 | |
| | Tanker Rotate Speed(rpm) | 0~17 |
| | Hydraulic Pump | Italy Brand: PMP |
| Drum Drive System | Hydraulic Motor | Italy Brand: PMP |
| | Speed Reducer | Germany Brand |
| | Radiator | KAITONG |
| | Water Tank Volume(L) | 400 |
