| Model NO.: | YJJ9400ZLS | Axle: | Fuhua Axle |
|---|---|---|---|
| Tyre: | New | Type: | Semi-Trailer |
| Load Capacity: | 30T | Wheel Base: | 8000-9000mm |
| Tread: | 2240mm | Grade: | Light Duty |
| Types Of Suspension Systems: | Air Suspension | Shape: | Flatbed |
| Self-dumping: | Self-dumping | ABS Anti-lock Braking System: | ABS Anti-lock Braking System |
| Condition: | New | After-sales Service: | 6 Months |
| Warranty: | 6 Months | Axle Number: | 4 |
| Tire Number: | 8 | Transport Package: | Nude Packing |
| Specification: | 10245x2496x3450m | Trademark: | Hua Hang |
| Origin: | China Liangshan | HS Code: | 8716900000 |
| Supply Ability: | 1000pieces/Year | Package Size: | 1300.00cm * 250.00cm * 350.00cm |
| Package Gross Weight: | 7000.000kg | Material: | Iron |
| Color: | Customized | Order: | Support Custom |
| Customization: | Available | Customized Request | Shipping Cost : | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
| Model NO | YJJ9400ZLS | Tread | 1820-2040mm | |
| Grade | as Your Requirement | Types of Suspension Systems | Spring Leaf Suspension or Air Suspension | |
| Shape | Flatbed | Axle Number | 2-4 or More | |
| Tire Number | 4-16PCS as Per Alxe | Self-dumping | Self-dumping | |
| ABS Anti-lock Braking System | ABS or Ebs | Material | Steel | |
| Condition | New | Cargo Floor Height | 1500/1550mm | |
| Brake Pad | Drum or Disc Brake | Lamp & Lights | All LED | |
| Electric System | 12/24V | Transport Package | Roll on Roll off Shipping | |
| Specification | 9000-9500*2550*3100-3500mm | Trademark | Customized | |
| Origin | China | HS Code | 87163990 | |
| Production Capacity | 1000 Pieces/Year |
| Trailer Name | Self Unloading Grain Transport Semi Trailer for Agricultural/Corns/Peanuts/Wheat/Coals/Minerals |
| Main Use | Mainly for transport of bulk cereal grains,corns,maize,whet,coal,mineral stones,etc. |
| Main feature | Rear dis-charge by roll-able conveyor belt with not-stick coating |
| Roll-able conveyor belt | Belt's rolling driven force: electric motor Material:roll-able conveyor belt,non-stick coating Belt length: 8500~1200mm,as per trailer's length Belt Width:2500mm, as per trailer box inner size Belt Thickness:5~15mm,or as request Rolling speed: 200~500mm per minute |
| Container Side Wall | Thickness: 2mm, High Strength Steel Plate |
| Top of Container | Steel Closed Cover,or Tarpaulin as option |
| Container Inner Size | Length: 8300mm~11650mm Width: 2300-2400mm Height: 1400mm~2200mm |
| Curb Weight | 9.2~11.0Tons as per trailer's different length |
| Loading Capacity | 40T ~ 100Tons, 35~ 65m³ |

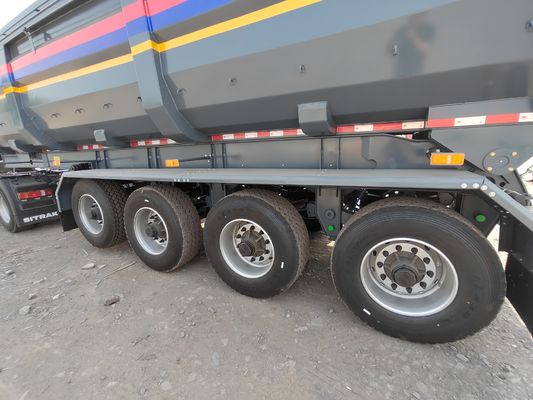

| Axles | Brand: Fuwa/BPW/SAF brand or as request; Axle number3/4/5 axles or more; Loading capacity: 13/16/20tons per Axle. |
| Suspensions | Leaf Spring Suspension or Air Suspension |
| Leaf Springs | Brand:FUWA/BPW,etc; Specs:10*13*90(i.e.:10 Layers of leaf spring sheet,13mm thickness per sheet,90mm width per layer) Optional:4layers,3layers,1layer springs with different spec data. |
| Main beams | "H-shape"designed,extra durability even with heavy duty loading; Q355B high tensile steel,supplied by Shanghai Baogang Steel,top-class supplier; Welded by automatic Submerged-Arc processes. |
| Top Flange thickness:6/8/10/12/14mm,width 140/160mm; Bottom Flange thickness:8/10/12/14/16mm,width 140/160mm; Middle Flange thickness:4/5/6/7/8mm; height 400/450/500/550mm; | |
| Tyres | Brand: chaoyang or chengshan brand Specs: 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 Spare tyre:1 standard set with rack. |
| Wheel Rims | Material: high strength steel or aluminium alloy Specs:6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
| Traction Pin | JOST brand, Diametre:2.0" (50#) or 3.5"(90#) |

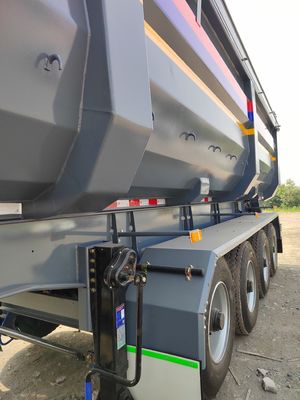

| Landing Leg | JOST, FUWA or YAHUA brand 28Tons per leg |
| Braking system | Brand:HKW/Wabco brand automatic brake valve; Dual line pneumatic brake system; T30 air chambers; Air cylinder tanks: 40/60 liters, steel or aluminium material. |
| Brake air chambers | For 3 axles,its' 4 double + 2 single chamber or 6 double chambers |
| Tool box | 1 standard tool box or as request; Material:steel or aluminium alloy with water proof. |
| Electrical system | 1.Voltage: 12/24v 2.Receptacle: 7 ways (7 wire harness) 3.Lights:Tail lamps with turn signal, brake lights & reflector,side lamps etc,all LED. |
| Painting | Sandblasting, rust prevention, 1or 2 layer of primer,1 layer of finishing,or as request. |
| Packing | Nude packing, Polish with wax before shipping if necessary |
